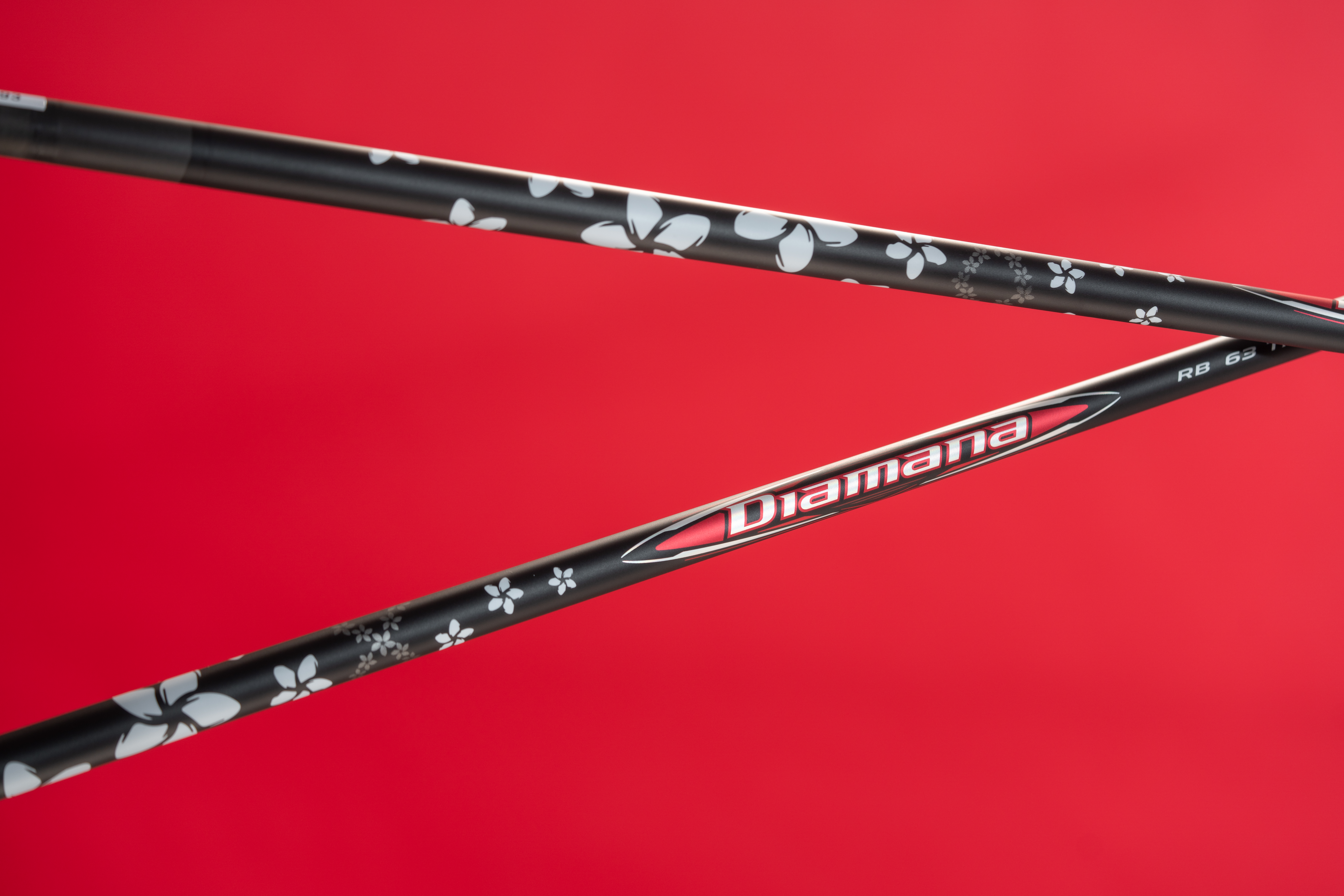

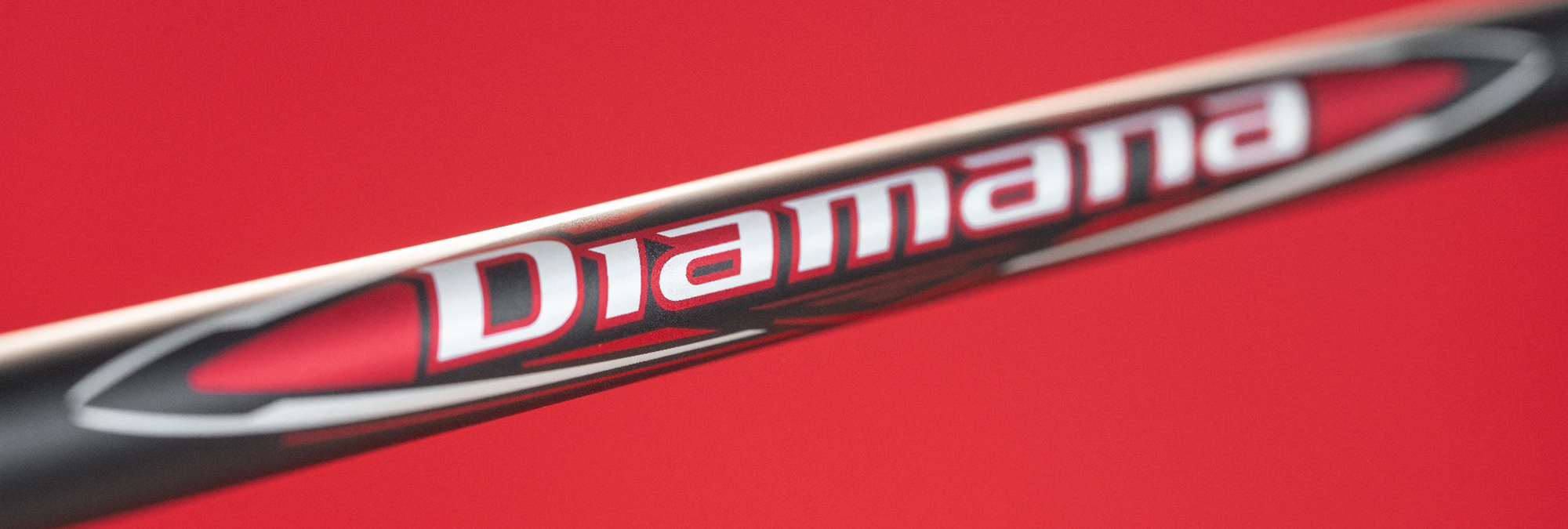

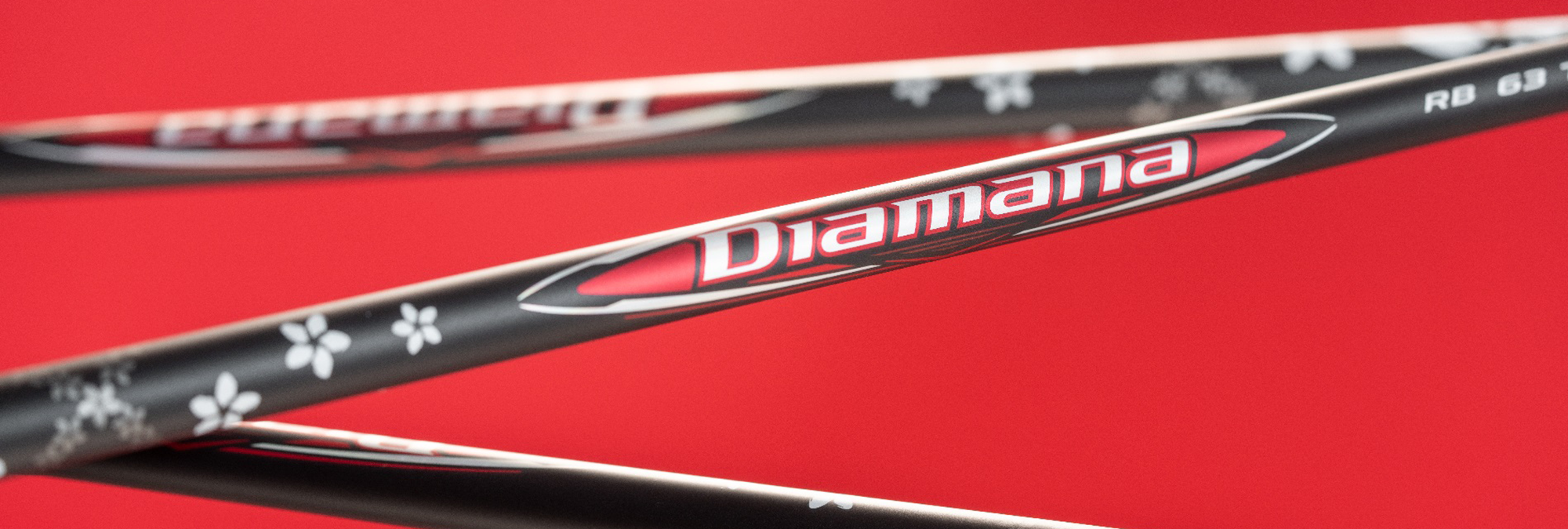

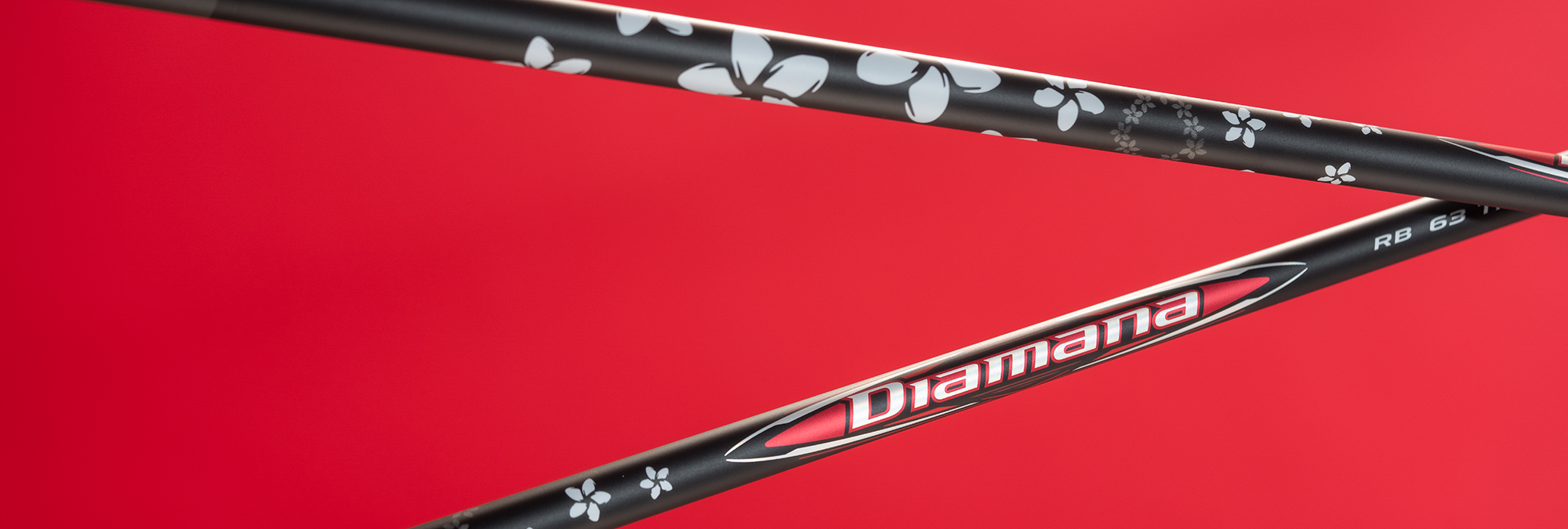

Diamana™ RB

The Diamana™ RB, the third release in the 6th-generation family, has the Red profile model.
By reducing tip stiffness, it promotes a high launch, while the new "New Tip Tec" technology enables optimal torque recovery for appropriate spin control.
It meets the needs of players seeking to hit the ball higher and farther.

SPEC

Shaft Name	Flex	Length(mm)	Weight(g)	Tip O/D (mm)	Tip Length(mm)	Butt O/D(mm)	Torque(deg)	Kick Pt.
Diamana RB 43	R2	1168	43.5	8.60	75	15.15	5.1	MID
Diamana RB 43	R	1168	44.5	8.60	75	15.20	5.1	MID
Diamana RB 43	SR	1168	46.5	8.60	75	15.25	5.1	MID
Diamana RB 43	S	1168	48.0	8.60	75	15.30	5.1	MID
Diamana RB 43	X	1168	49.0	8.60	75	15.40	5.1	MID
Diamana RB 53	R	1168	50.0	8.60	75	15.15	4.9	MID
Diamana RB 53	SR	1168	51.5	8.60	75	15.15	4.9	MID
Diamana RB 53	S	1168	53.5	8.60	75	15.20	4.9	MID
Diamana RB 53	X	1168	55.0	8.60	75	15.25	4.9	MID
Diamana RB 53	TX	1168	56.0	8.60	75	15.25	4.9	MID
Diamana RB 63	R	1168	60.0	8.60	75	15.30	3.2	MID
Diamana RB 63	SR	1168	60.5	8.60	75	15.30	3.2	MID
Diamana RB 63	S	1168	61.0	8.60	75	15.30	3.2	MID
Diamana RB 63	X	1168	61.5	8.60	75	15.30	3.2	MID
Diamana RB 63	TX	1168	62.0	8.60	75	15.30	3.1	MID
Diamana RB 73	S	1168	70.0	8.60	75	15.30	2.9	MID
Diamana RB 73	X	1168	70.5	8.60	75	15.35	2.9	MID
Diamana RB 73	TX	1168	72.0	8.60	75	15.35	2.9	MID
Diamana RB 83	S	1168	80.0	8.60	75	15.30	2.8	MID
Diamana RB 83	X	1168	80.5	8.60	75	15.30	2.8	MID
Diamana RB 83	TX	1168	81.0	8.60	75	15.30	2.8	MID

[MADE IN CHINA]/[MADE IN JAPAN]

TECHNOLOGY

X‑link Tech

A new matrix resin technology that optimizes composition to form a rigid cross‑link structure. Enhances molding properties by up to 14% in strength, 15% in modulus, and 8% in strain-to-failure compared to conventional resins—unlocking MR70’s full potential.
Consistent Feel Design

Minimizes weight differences and butt-diameter variation between flexes in same weight class, and butt diameter differences across 40–80 g specs. Reduces sensory mismatch between weights/flexes, enabling smoother set-up from drivers to fairway woods.
New Tip Technology

Optimizes tip torsion alignment to enhance swing stability from top through downswing for large-head/high‑MOI clubs, delivering efficient energy transmission during impact.

MATERIAL

DIALEAD™

Lightweight, high-modulus pitch‑based carbon fiber used in aerospace; its low thermal expansion ensures dimensional stability for superior reinforcement effect.
