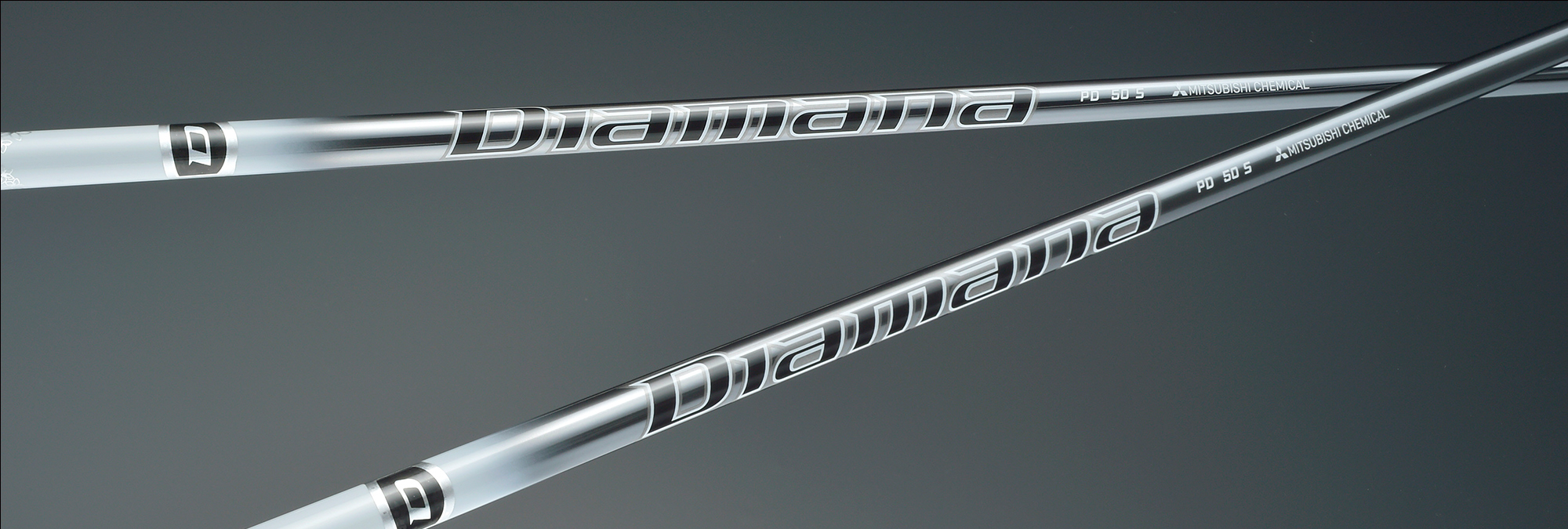

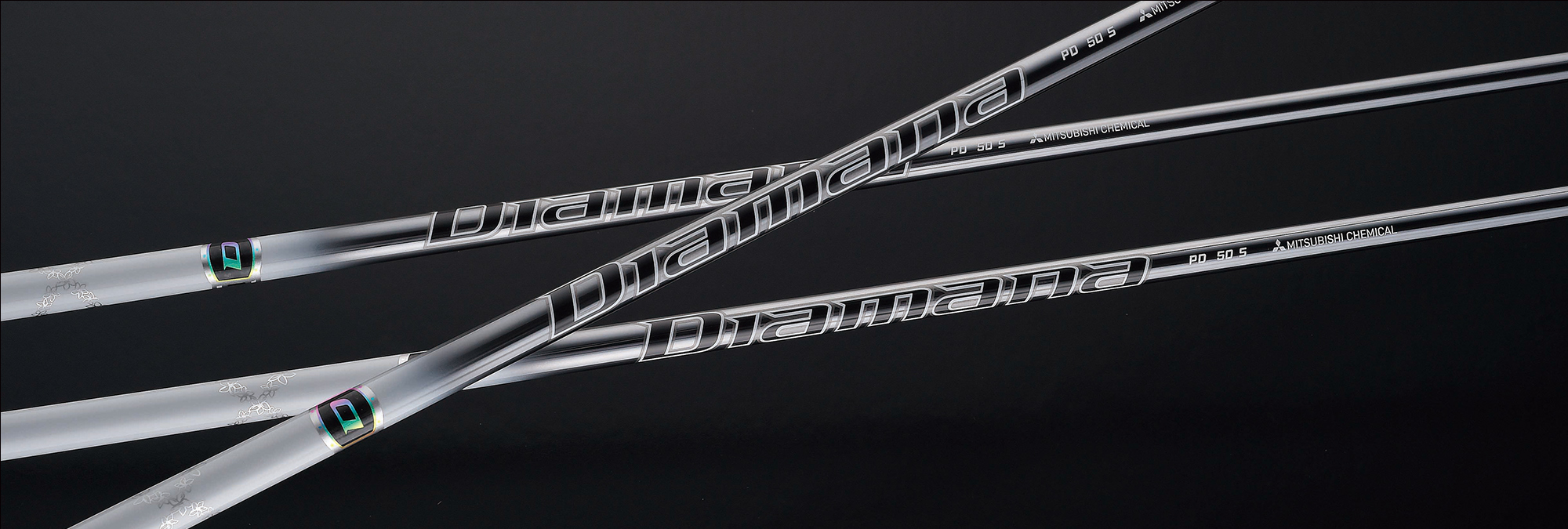

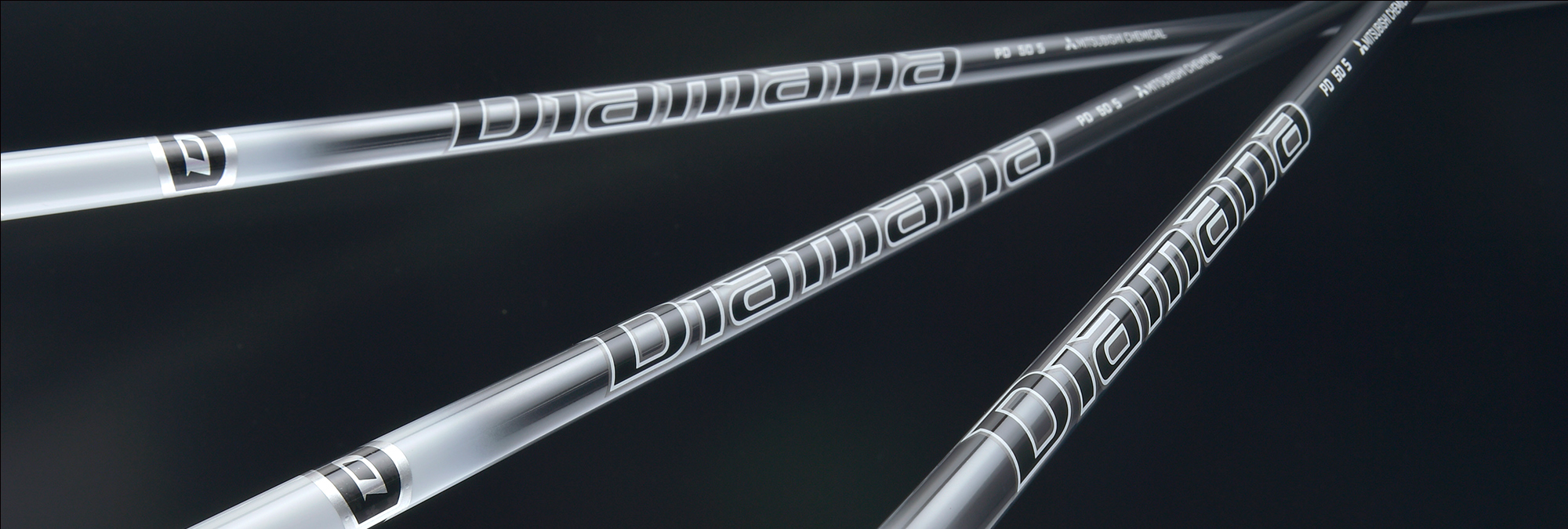

Diamana™ PD
Pursuing both stability and distance, this model leverages advanced materials and development technologies to maximize distance performance. Designed with the latest club trends in mind based on the latest club trends, it achieves a smooth swing-through and stable shaft behavior at impact. By enhancing tip rigidity, it helps compensate for off-center hits often seen in amateur golfers average players. This all-new design uniquely combines smooth swingability with diamond-like tip strength.
SPEC
| Shaft Name | Flex | Length(mm) | Weight(g) | Tip O/D (mm) | Tip Length(mm) | Butt O/D(mm) | Torque(deg) | Kick Pt. |
|---|---|---|---|---|---|---|---|---|
| Diamana™ PD 40 | R2 | 1168 | 45.5 | 8.6 | 75 | 15.40 | 6.0 | MID-HIGH |
| Diamana™ PD 40 | R | 1168 | 45.5 | 8.6 | 75 | 15.40 | 5.8 | MID-HIGH |
| Diamana™ PD 40 | SR | 1168 | 46.5 | 8.6 | 75 | 15.40 | 5.8 | MID-HIGH |
| Diamana™ PD 40 | S | 1168 | 48 | 8.6 | 75 | 15.40 | 5.8 | MID-HIGH |
| Diamana™ PD 40 | X | 1168 | 49.5 | 8.6 | 75 | 15.40 | 5.7 | MID-HIGH |
| Diamana™ PD 50 | R | 1168 | 53 | 8.6 | 75 | 15.40 | 4.8 | MID-HIGH |
| Diamana™ PD 50 | SR | 1168 | 54 | 8.6 | 75 | 15.40 | 4.8 | MID-HIGH |
| Diamana™ PD 50 | S | 1168 | 54.5 | 8.6 | 75 | 15.40 | 4.8 | MID-HIGH |
| Diamana™ PD 50 | X | 1168 | 56.5 | 8.6 | 75 | 15.40 | 4.7 | MID-HIGH |
| Diamana™ PD 50 | TX | 1168 | 59 | 8.6 | 75 | 15.40 | 4.6 | MID-HIGH |
| Diamana™ PD 60 | SR | 1168 | 64.5 | 8.6 | 75 | 15.50 | 3.3 | MID-HIGH |
| Diamana™ PD 60 | S | 1168 | 64.5 | 8.6 | 75 | 15.50 | 3.3 | MID-HIGH |
| Diamana™ PD 60 | X | 1168 | 66.5 | 8.6 | 75 | 15.50 | 3.2 | MID-HIGH |
| Diamana™ PD 60 | TX | 1168 | 67.5 | 8.6 | 75 | 15.50 | 3.1 | MID-HIGH |
| Diamana™ PD 70 | S | 1168 | 74 | 8.6 | 75 | 15.60 | 3.0 | MID-HIGH |
| Diamana™ PD 70 | X | 1168 | 75 | 8.6 | 75 | 15.60 | 3.0 | MID-HIGH |
| Diamana™ PD 70 | TX | 1168 | 76 | 8.6 | 75 | 15.60 | 2.9 | MID-HIGH |
| Diamana™ PD 80 | S | 1168 | 84 | 8.6 | 75 | 15.45 | 3.0 | MID-HIGH |
| Diamana™ PD 80 | X | 1168 | 85 | 8.6 | 75 | 15.45 | 3.0 | MID-HIGH |
| Diamana™ PD 80 | TX | 1168 | 85.5 | 8.6 | 75 | 15.45 | 3.0 | MID-HIGH |
TECHNOLOGY
-
X‑link Tech
A new matrix resin technology that optimizes composition to form a rigid cross‑link structure. Enhances molding properties by up to 14% in strength, 15% in modulus, and 8% in strain-to-failure compared to conventional resins—unlocking MR70’s full potential.
-
Consistent Feel Design
Minimizes weight differences and butt-diameter variation between flexes in same weight class, and butt diameter differences across 40–80 g specs. Reduces sensory mismatch between weights/flexes, enabling smoother set-up from drivers to fairway woods.
MATERIAL
-
MR70™
A breakthrough carbon fiber balancing stiffness and strength by reengineering precursor and resin processes. Offers ~20% higher strength and ~10% higher modulus vs. previous grades.
-
BoronFiber
High‑reinforcement boron fiber used where rigidity and reinforcement are prioritized—e.g. aerospace or high-performance fishing rods.
