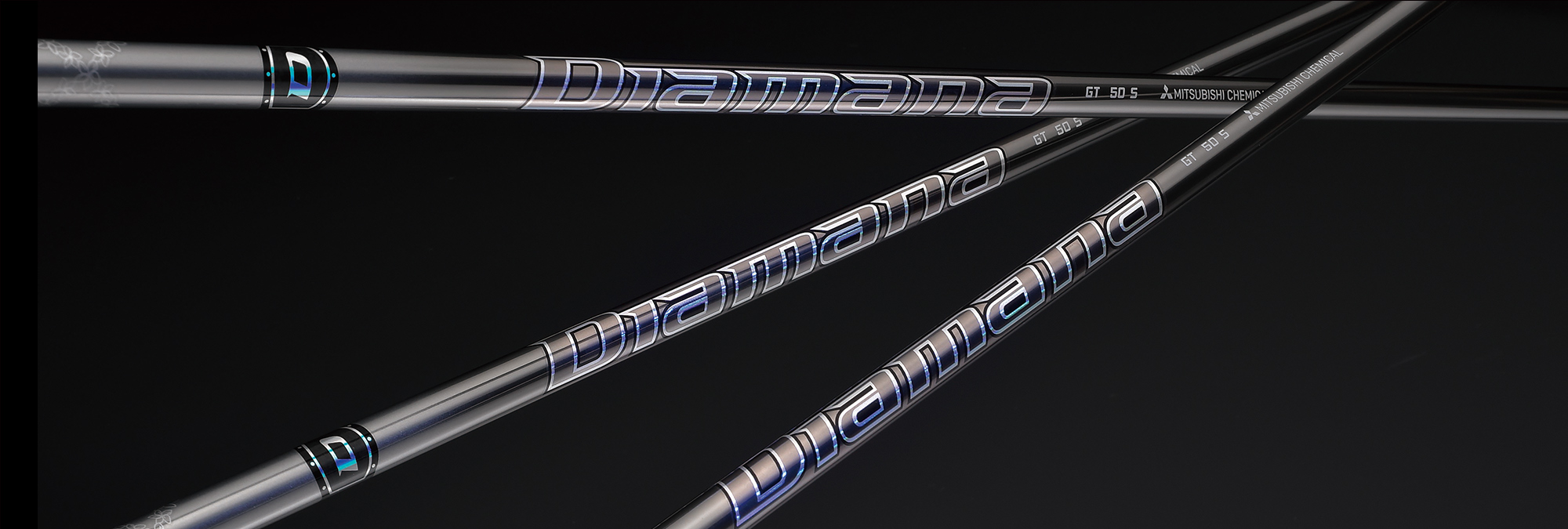

Diamana™ GT
Focusing on “optimized stiffness distribution,” this latest design enhances the rigidity at the butt end while retaining the strong tip section that minimizes head wobble. As a result, players can feel more flexibility in the mid-section of the shaft. The combination of high stability and quick shaft release delivers a consistent, automatic release and enables precise, intended trajectories. Designed for high stability with a quick rebound, enabling an automatic follow-through.
SPEC
| Shaft Name | Flex | Length(mm) | Weight(g) | Tip O/D (mm) | Tip Length(mm) | Butt O/D(mm) | Torque(deg) | Kick Pt. |
|---|---|---|---|---|---|---|---|---|
| Diamana™ GT 40 | R2 | 1168 | 46 | 8.6 | 75 | 15.50 | 5.6 | MID-HIGH |
| Diamana™ GT 40 | R | 1168 | 47 | 8.6 | 75 | 15.50 | 5.6 | MID-HIGH |
| Diamana™ GT 40 | SR | 1168 | 48.5 | 8.6 | 75 | 15.50 | 5.5 | MID-HIGH |
| Diamana™ GT 40 | S | 1168 | 49.5 | 8.6 | 75 | 15.50 | 5.4 | MID-HIGH |
| Diamana™ GT 40 | X | 1168 | 49.5 | 8.6 | 75 | 15.50 | 5.4 | MID-HIGH |
| Diamana™ GT 50 | R | 1168 | 56.5 | 8.6 | 75 | 15.50 | 4.7 | MID-HIGH |
| Diamana™ GT 50 | SR | 1168 | 56.5 | 8.6 | 75 | 15.50 | 4.7 | MID-HIGH |
| Diamana™ GT 50 | S | 1168 | 56.5 | 8.6 | 75 | 15.50 | 4.6 | MID-HIGH |
| Diamana™ GT 50 | X | 1168 | 59.5 | 8.6 | 75 | 15.50 | 4.6 | MID-HIGH |
| Diamana™ GT 50 | TX | 1168 | 61 | 8.6 | 75 | 15.50 | 4.5 | MID-HIGH |
| Diamana™ GT 60 | SR | 1168 | 60.5 | 8.6 | 75 | 15.50 | 3.9 | MID-HIGH |
| Diamana™ GT 60 | S | 1168 | 62.5 | 8.6 | 75 | 15.50 | 3.8 | MID-HIGH |
| Diamana™ GT 60 | X | 1168 | 65 | 8.6 | 75 | 15.50 | 3.8 | MID-HIGH |
| Diamana™ GT 60 | TX | 1168 | 65.5 | 8.6 | 75 | 15.50 | 3.8 | MID-HIGH |
| Diamana™ GT 70 | S | 1168 | 72.5 | 8.6 | 75 | 15.55 | 2.9 | MID-HIGH |
| Diamana™ GT 70 | X | 1168 | 75.5 | 8.6 | 75 | 15.55 | 2.8 | MID-HIGH |
| Diamana™ GT 70 | TX | 1168 | 77.5 | 8.6 | 75 | 15.55 | 2.8 | MID-HIGH |
| Diamana™ GT 80 | S | 1168 | 82 | 8.6 | 75 | 15.55 | 3.0 | MID-HIGH |
| Diamana™ GT 80 | X | 1168 | 85.5 | 8.6 | 75 | 15.55 | 2.9 | MID-HIGH |
| Diamana™ GT 80 | TX | 1168 | 85.5 | 8.6 | 75 | 15.55 | 2.9 | MID-HIGH |
TECHNOLOGY
-
X‑link Tech
A new matrix resin technology that optimizes composition to form a rigid cross‑link structure. Enhances molding properties by up to 14% in strength, 15% in modulus, and 8% in strain-to-failure compared to conventional resins—unlocking MR70’s full potential.
-
Consistent Feel Design
Minimizes weight differences and butt-diameter variation between flexes in same weight class, and butt diameter differences across 40–80 g specs. Reduces sensory mismatch between weights/flexes, enabling smoother set-up from drivers to fairway woods.
MATERIAL
-
MR70™
A breakthrough carbon fiber balancing stiffness and strength by reengineering precursor and resin processes. Offers ~20% higher strength and ~10% higher modulus vs. previous grades.
-
BoronFiber
High‑reinforcement boron fiber used where rigidity and reinforcement are prioritized—e.g. aerospace or high-performance fishing rods.
