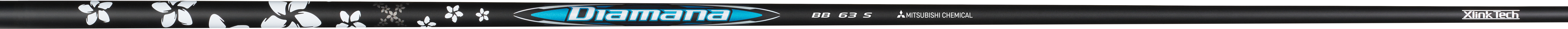

Diamana™ BB

The Diamana™ BB Series, the second model in the 6th-generation family, is designed with a smooth, continuous stiffness profile from butt to tip. This structure provides a natural return of flex that many players seek, while also ensuring solid impact even with high-MOI clubheads.
It offers an ideal balance of distance and stability, supporting a repeatable swing path that delivers both power and consistency.

SPEC

Shaft Name	Flex	Length(mm)	Weight(g)	Tip O/D (mm)	Tip Length(mm)	Butt O/D(mm)	Torque(deg)	Kick Pt.
Diamana BB 43	R2	1168	43.5	8.60	75	15.15	5.1	MID-HIGH
Diamana BB 43	R	1168	44.5	8.60	75	15.20	5.1	MID-HIGH
Diamana BB 43	SR	1168	46.5	8.60	75	15.25	5.1	MID-HIGH
Diamana BB 43	S	1168	48.0	8.60	75	15.30	5.1	MID-HIGH
Diamana BB 43	X	1168	49.0	8.60	75	15.40	5.1	MID-HIGH
Diamana BB 53	R	1168	50.0	8.60	75	15.15	4.9	MID-HIGH
Diamana BB 53	SR	1168	51.5	8.60	75	15.15	4.9	MID-HIGH
Diamana BB 53	S	1168	53.5	8.60	75	15.20	4.9	MID-HIGH
Diamana BB 53	X	1168	55.0	8.60	75	15.25	4.9	MID-HIGH
Diamana BB 53	TX	1168	56.0	8.60	75	15.25	4.9	MID-HIGH
Diamana BB 63	R	1168	60.0	8.60	75	15.30	3.2	MID-HIGH
Diamana BB 63	SR	1168	60.5	8.60	75	15.30	3.2	MID-HIGH
Diamana BB 63	S	1168	61.0	8.60	75	15.30	3.2	MID-HIGH
Diamana BB 63	X	1168	61.5	8.60	75	15.30	3.2	MID-HIGH
Diamana BB 63	TX	1168	62.0	8.60	75	15.30	3.1	MID-HIGH
Diamana BB 73	S	1168	70.0	8.60	75	15.30	2.9	MID-HIGH
Diamana BB 73	X	1168	70.5	8.60	75	15.35	2.9	MID-HIGH
Diamana BB 73	TX	1168	72.0	8.60	75	15.35	2.9	MID-HIGH
Diamana BB 83	S	1168	80.0	8.60	75	15.30	2.8	MID-HIGH
Diamana BB 83	X	1168	80.5	8.60	75	15.30	2.8	MID-HIGH
Diamana BB 83	TX	1168	81.0	8.60	75	15.30	2.8	MID-HIGH

[MADE IN CHINA / MADE IN JAPAN]

TECHNOLOGY

X‑link Tech

A new matrix resin technology that optimizes composition to form a rigid cross‑link structure. Enhances molding properties by up to 14% in strength, 15% in modulus, and 8% in strain-to-failure compared to conventional resins—unlocking MR70’s full potential.
Consistent Feel Design

Minimizes weight differences and butt-diameter variation between flexes in same weight class, and butt diameter differences across 40–80 g specs. Reduces sensory mismatch between weights/flexes, enabling smoother set-up from drivers to fairway woods.
New Tip Technology

Optimizes tip torsion alignment to enhance swing stability from top through downswing for large-head/high‑MOI clubs, delivering efficient energy transmission during impact.

MATERIAL

DIALEAD™

Lightweight, high-modulus pitch‑based carbon fiber used in aerospace; its low thermal expansion ensures dimensional stability for superior reinforcement effect.
